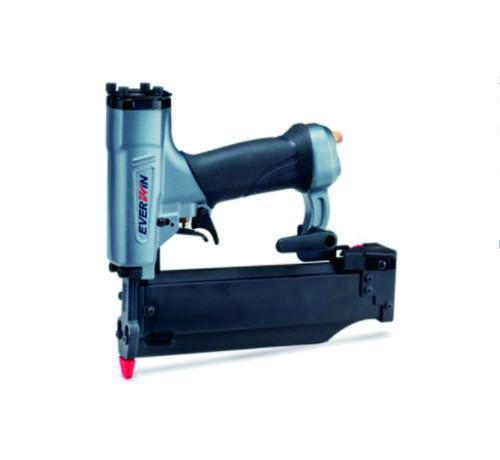

The Everwin P850EA 23 gauge micro pinner is designed to drive 23 gauge headless pins from 5/8” to 2” in length. This industrial-strength headless pin nailer drives pins without splitting or requiring touch up work.

Features

• Last nail lockout with override system, to prevent dry fires and driver marks on the workpiece
• Designed with an ergonomic handle, providing user comfort and durability
• Featuring a narrow nose and no-mar pad, offering precise pin placement and clean finish on tight corners
• An automatic pin length adjustment with easy side loading system minimizes downtime
• Double safety trigger
• Rear exhaust with built-in muffler
• Reversible belt hook
• Pin reload indicator
• Includes easy access bolts and wrench, for jam clearing and depth adjustment

Specifications

• Tool Weight: 2.7 lbs
• Height: 8.9”
• Length: 10.2”
• Width: 1.8”
• Trigger Type: Trigger Actuation
• Operating Pressure: 70 - 100 PSI
• Driving Power: 135 in-lbs
• Air Consumption: 0.5 liters/second at 90 psi
• Air Inlet NPT: 3/8"
• Capacity: 100 Nails
