The INDUSTRIAL 2 Decorative Sliding Hardware Kit is a barn door steel style system for wall mounted wood doors weighing up to 176 lb (80 kg) each.

Features

• Kit format includes hardware set for one door and track set 78 in (2 m) long
• Steel nickel finish
• Made for door thicknesses ranging from 1 3/8 in to 1 3/4 in (35 mm to 45 mm)
• Two-part floor guide that does not require a groove at the bottom of the door
• Direct mount wood screw lag bolt for a simple installation
• Couple available for biparting applications
• Two packaging format options:
  A) PVC - clear plastic box and foam base with cutouts to hold and display each major component, ideal for retail showrooms.
  B) White cardboard box and a photo label with an image of a basic application and text describing the major features, ideal for retail/lumberyard store floors and multi-residential projects.
• The INDUSTRIAL 2 is an ideal solution for residential applications.
• Not suitable for high humidity areas like saunas and indoor pools.

Specifications

• Door Material: Wood
• Door Movement: Straight Sliding
• Detailed Door Movement: Barn door
• Track Mounting: Wall Mount
• Brand: Onward
• Function: Sliding Door
• Door Projection: 71 mm
• Height Clearance: 108 mm
• Weight Capacity per Door: 15 to 80 kg
• Number of Doors: 1
• Door Thickness: 35 to 45 mm
• Door Width: 24 to 40 in
• Door Height: 3 050 mm
• Soft-Closing: No
• Stopper: Two
• Roller Type: Ball Bearing
• Roller Position: Upper
• Track Material: Steel
• Overall Length: 2 m
• Product type: 2 m Kit
• Track Finish: Satin Nickel
• Track type: Tube
• Style: Contemporary
• Running Track Fixing: Surface Mount
• Set Screws Included: Yes
• Groove Width at the Bottom of Door: 7 mm
• Groove Depth: 20 mm
• Door Installation: Top Hung
• Material: Steel
• Finish: Satin nickel
• Weight Capacity per Panel: 80 kg

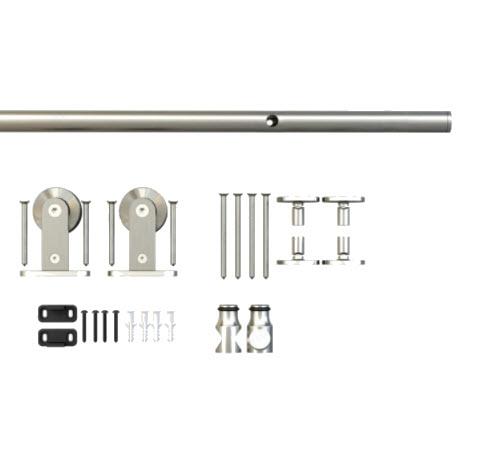

Includes

• 1 tube rail of 78 3/4 in (2 m)
• 2 single roller supports for 1 3/8 in (34.9 mm) or 1 3/4 in (44.4 mm) door
• 2 end bumpers
• 4 wall-mount brackets
• 2 anti-derailment devices
• Door bottom guide
