The BLACK ARROW Decorative Sliding Hardware Kit is a barn door arrow bar style system for wall mount wood doors weighing up to 220 lb (100 kg).

Features

• Kit format includes hardware set for one door and track set 78 in (2 m) long
• Matte black
• Surface strap mount flat bar with through bolts for quick and secure installation
• Two-part floor guide that does not require a groove at bottom of the door
• Available soft-close mechanism (sold separately) for doors weighing up to 176 lb (80 kg) each
• For biparting application, the position of the upper trolleys will need to be shifted
• Two packaging format options:
  A) PVC - clear plastic box and foam base with cutouts to hold and display each major component, ideal for retail showrooms.
  B) White cardboard box and a photo label with an image of a basic application and text describing the major features, ideal for retail/lumberyard store floors and multi-residential projects.
• The BLACK ARROW is an ideal solution for residential applications.

Specifications

• Door Material: Wood
• Door Movement: Straight Sliding
• Detailed Door Movement: Barn door
• Track Mounting: Wall Mount
• Brand: Onward
• Function: Sliding Door
• Door Projection: 81 mm
• Height Clearance: 136 mm
• Weight Capacity per Door: 15 to 100 kg
• Number of Doors: 1
• Door Thickness: 1 3/8 to 1 3/4 in
• Door Width: 24 to 40 in
• Door Height: 3 050 mm
• Soft-Closing: No
• Stopper: Two
• Roller Type: Ball Bearing
• Roller Position: Upper
• Track Material: Steel
• Overall Length: 2 m
• Product type: Complete Set
• Track Finish: Black
• Track type: Flat Bar
• Style: Rustic
• Set Screws Included: Yes
• Groove Width at the Bottom of Door: 7 mm
• Groove Depth: 20 mm
• Groove Needed for Guiding System: No
• Door Installation: Top Hung
• Material: Steel
• Finish: Black

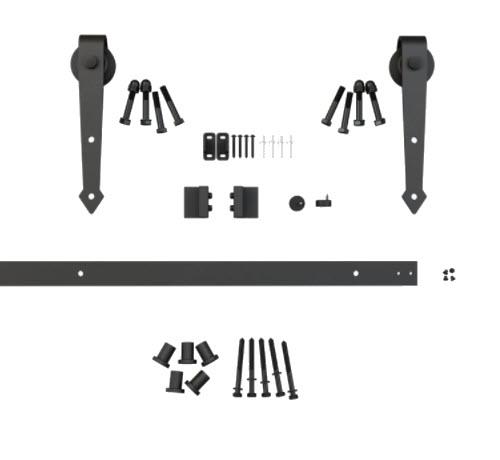

Includes

• Flat rail of 78 3/4 in (2 m)
• 2 single roller supports for 1 3/8 in (34.9 mm) or 1 3/4 in (44.45 mm) door
• 2 end bumpers
• 5 wall-mount brackets
• 2 anti-derailment devices
• 1 door bottom guide
